DUO DC/AC NAVIGATOR - 12/24V and 120/230V - Patented model

Fresh water production: 60 or 100 liters/hour

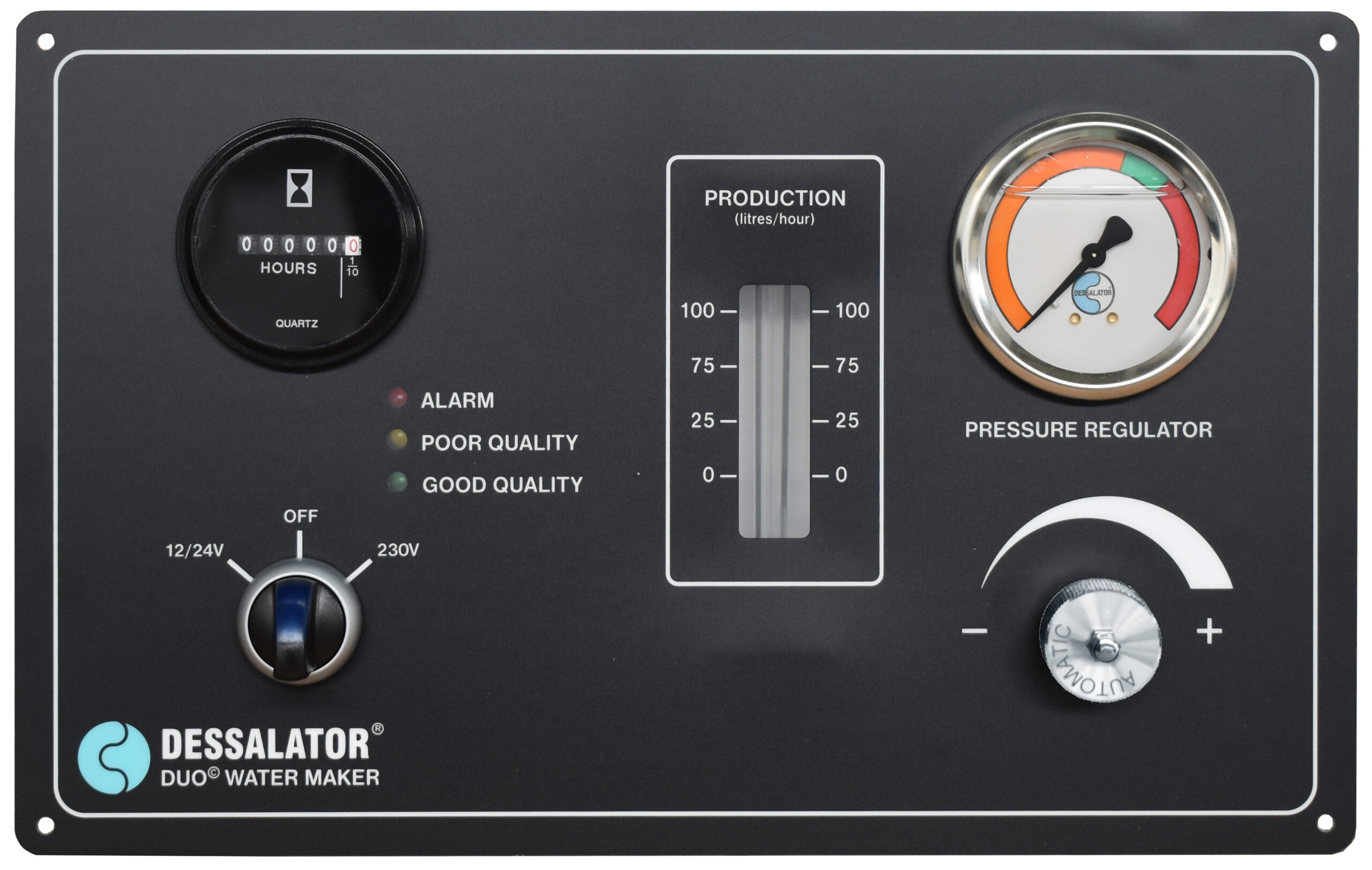

Modular version with remote control panel
For motorboats and sailboats from 10 to 15 meters
The world's first dual-energy watermaker system
A single inverter allows the starting of the motor in 12V or 24V and in 120V or 230V
The Duo is a clever and patented system.

The DUO AC/DC NAVIGATOR model includes the "AUTOMATIC" option for pressure regulation by default.
As a result, the rise in pressure is done automatically and remains stabilized in the right zone in order to obtain optimum production in all circumstances.

The DUO AC/DC NAVIGATOR model also has many advantages:

  • Designed to meet the demands of intensive use

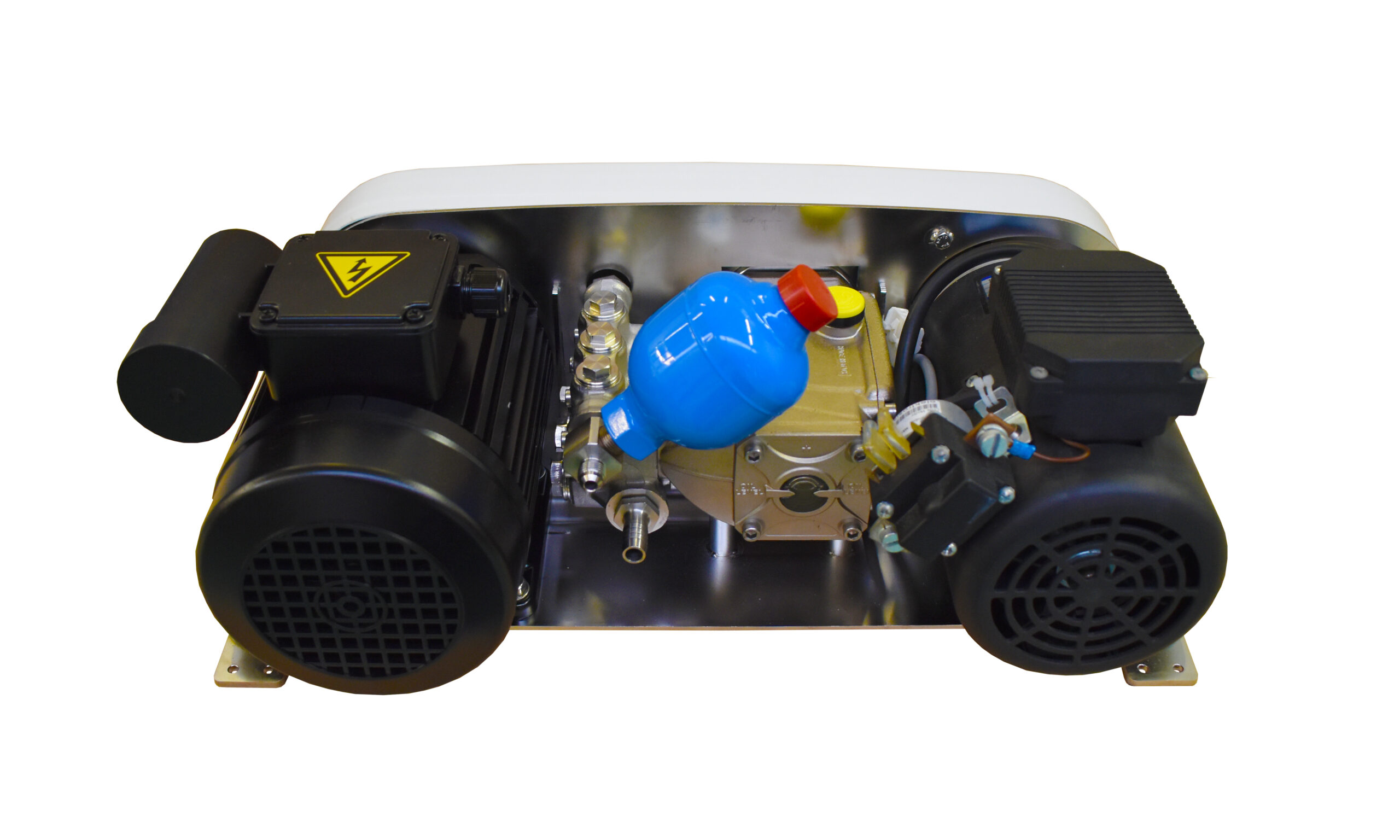

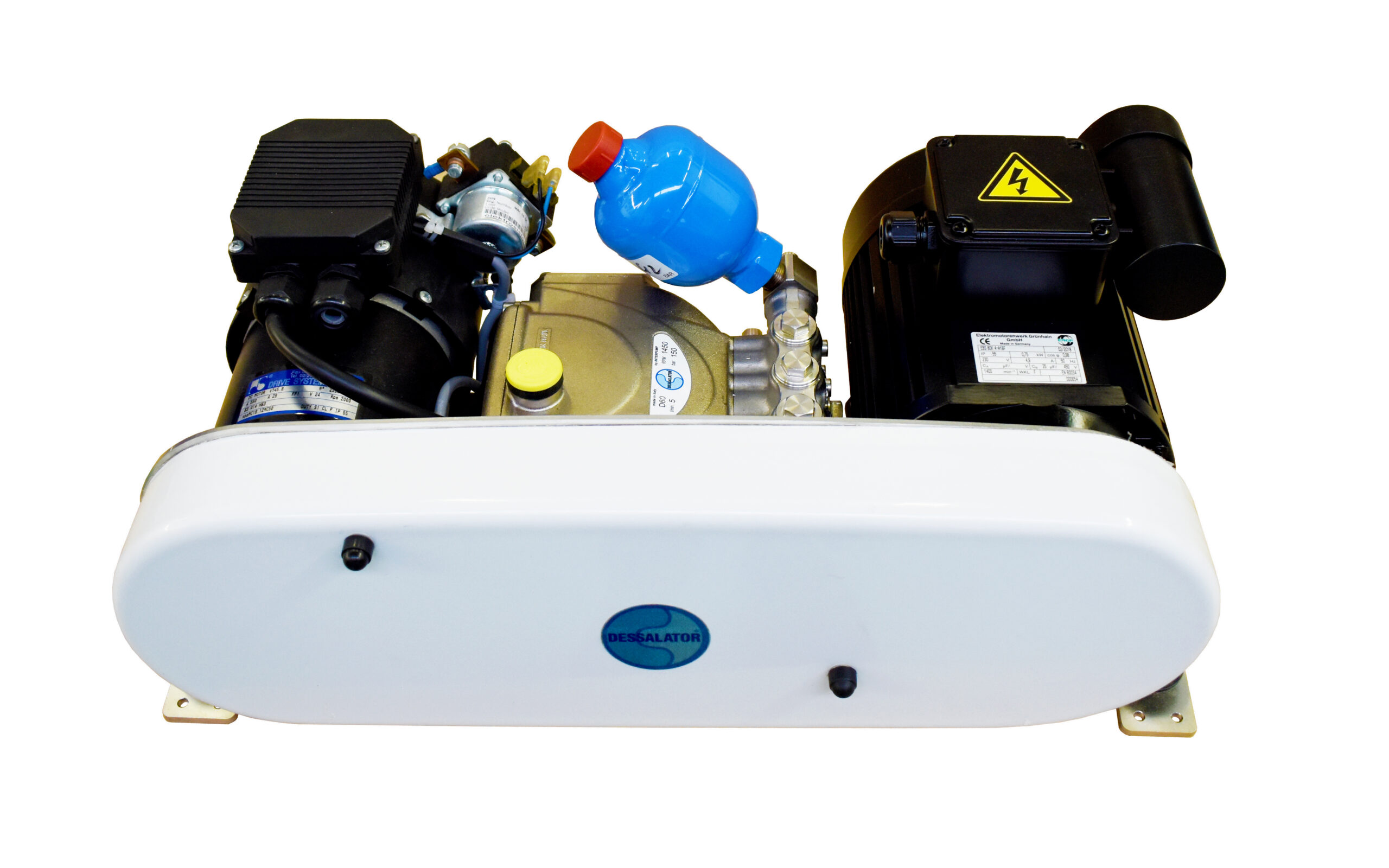

  • New design of the high pressure pump
  • Stainless steel pump head
  • High resistance to corrosion and electrolysis
  • Easy access for inspection and maintenance
  • Quieter thanks to its design
  • Motor/pump block dimension reduced by 30%
  • Equipped with a flow controller to protect the membranes when sailing in brackish water
  • Developed and tested by Dessalator for 5 years in collaboration with the world's largest manufacturer of high pressure pumps
  • Patented design

Thanks to this system, the motors engage independently of each other, without electric clutch or manual intervention on the pulleys. Reliable and 100% safe, like all Dessalator products.
For more than ten years, the DUO 60 and 100 have been fitted in series by major shipyards and are the essential choice of sailors. The advantage of the Duo is the "2 in 1", as if you had two watermakers, with the possibility of optimal and logical operation.

For example: when there is no wind and the motor is running, there is 12V or 24V at will. Here, direct current operation is interesting (DUO 60: 370 W, DUO 100: 600 W).
At anchor or when the generator is running, the watermaker is used at 230V.

It's low power consumption (DUO 60: 5A, DUO 100: 6.5A) allows full charger power to be retained for recharging batteries and other uses (e.g. hot water tank).

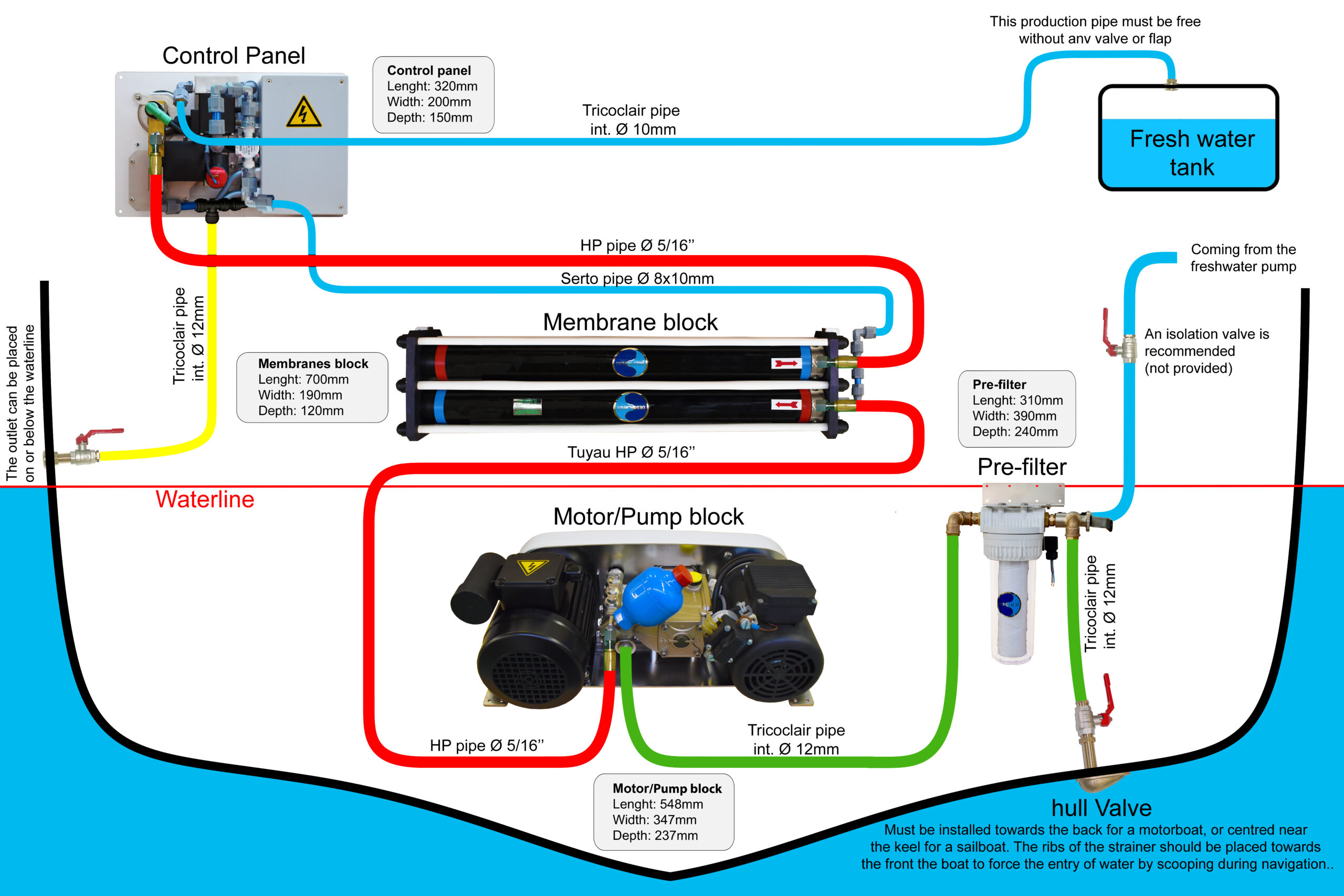

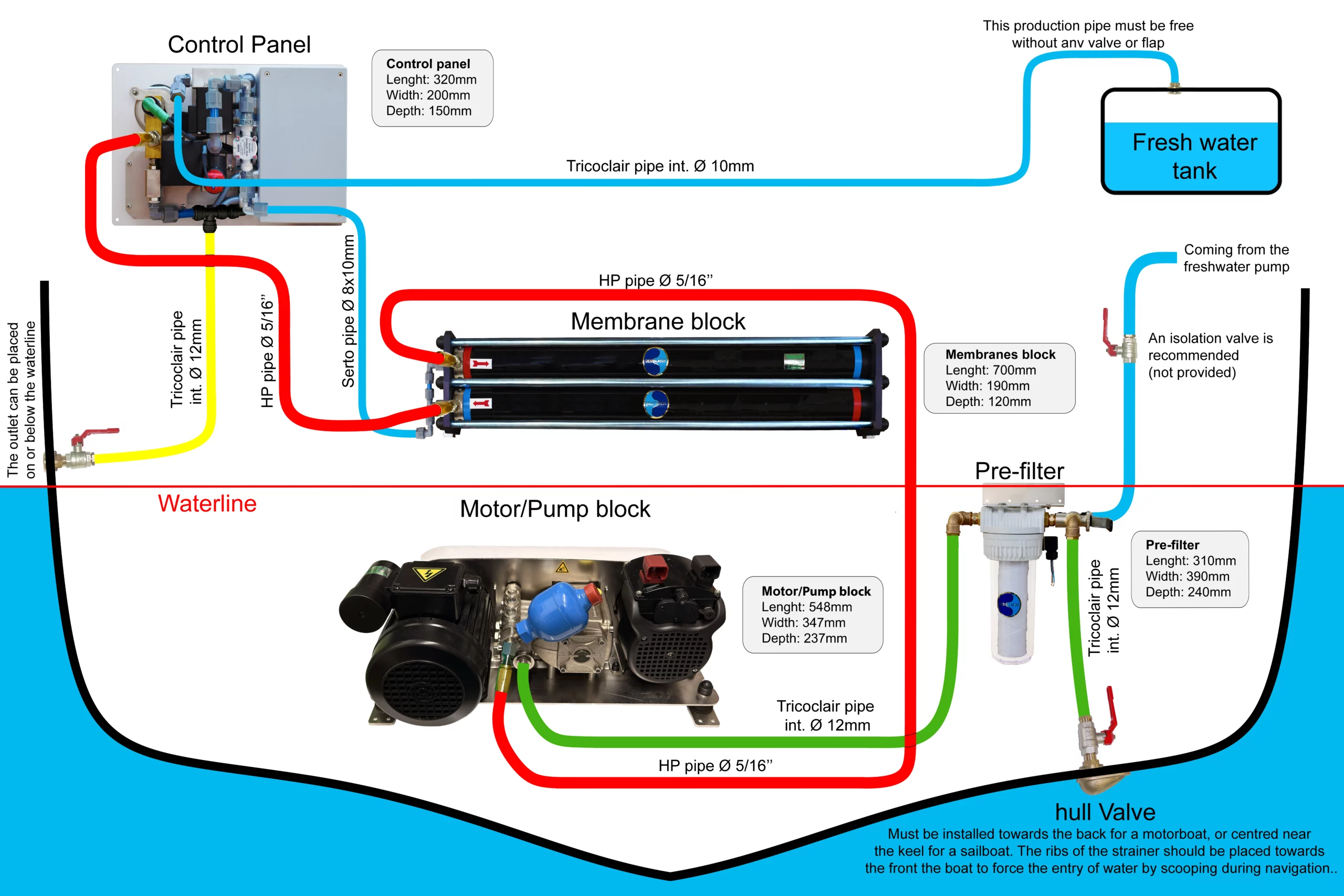

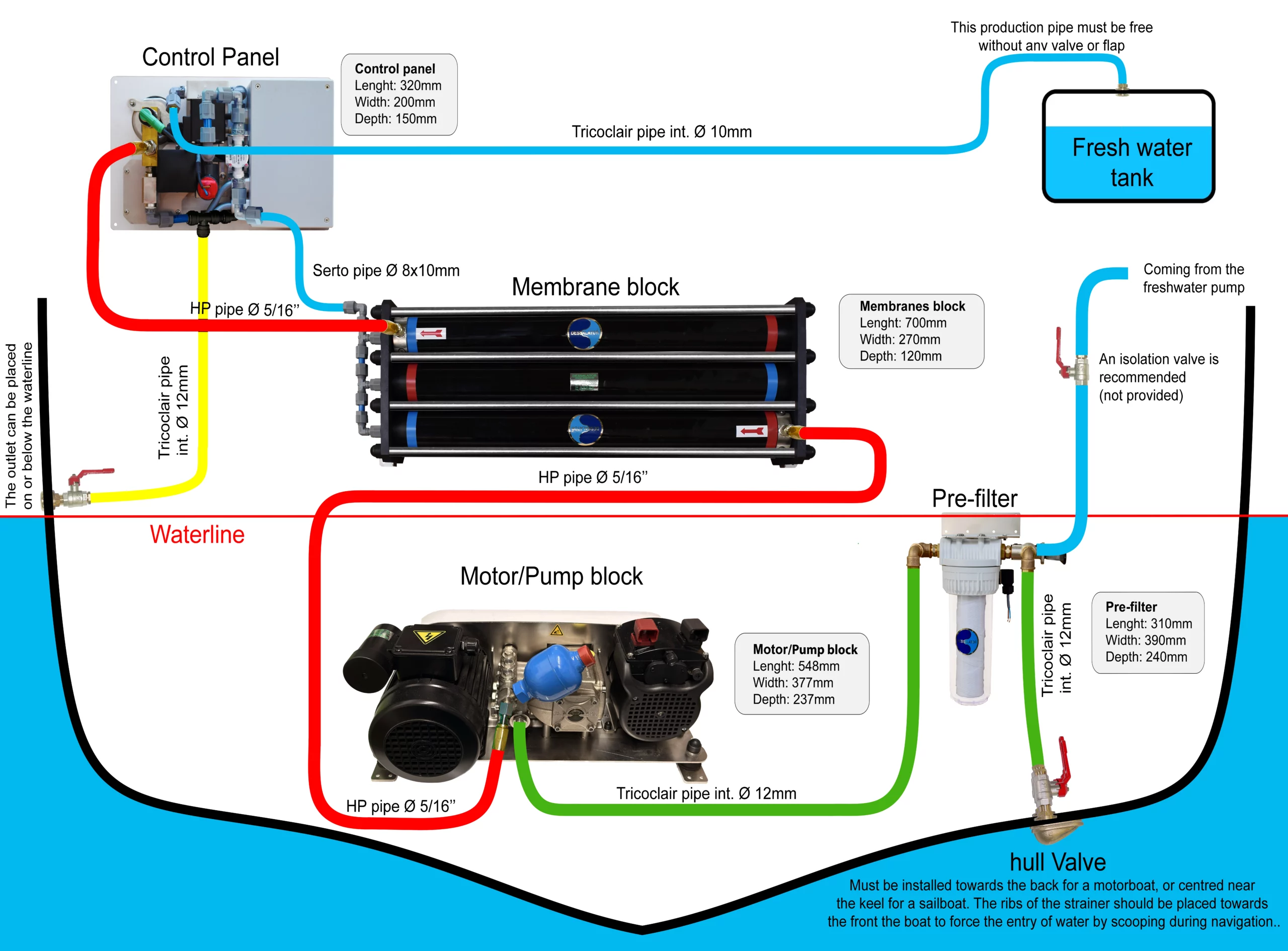

In standard assembly, only the hull valve with strainer is delivered. The other valves can be supplied on request because most of the time the discharges are connected to existing discharges and the fresh water departures often have shut-off valves.

Other advantages of this model:

  • Pressure rise is done automatically
  • Fits in small spaces - no more wasting valuable storage
  • High production: 60 or 100 litres/hour
  • Integrated automatic rinsing
  • Easy to use, easy to maintain
  • Robust components offering strength and reliability
  • Option: mini-control or micro-control
